FIBROPLAN
A40
Vantaggi del prodotto:
- Worm drive (with adjustable play) for highest drive torques and lowest backlash
- Extremely low design for maximum operating area
- Design with force distribution optimisation for highest rigidity
- Pre-stressed axial/radial bearing for highest resistance to tilt and best axial runout accuracy and concentricity
- High-resolution encoder for excellent positioning accuracy (up to ± 2") and repeat accuracy (up to ± 0.25")
- Hydraulic table top clamping for highest tangential rigidity without loading the drive components
- Tried and tested over decades, renowned for best possible operational safety
Precision and Power in Universal Positioning!

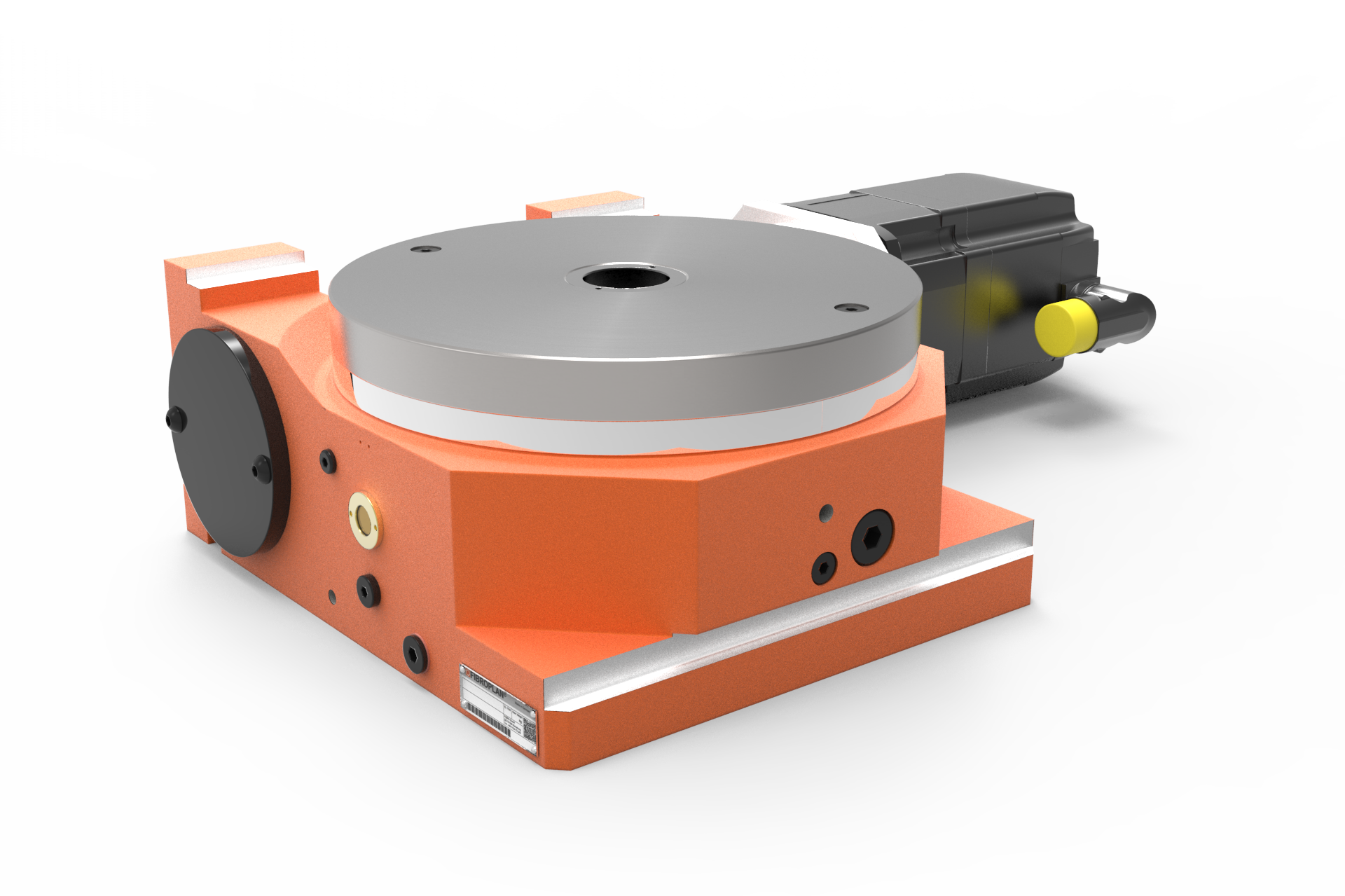

The FIBROPLAN® NC rotary table with worm drive is a techical masterpiece for machine builders, designed for maximum precision and flexibility in rotary and multi-axis machining. With its adjustable backlash worm gear and high-resolution measuring systems, it offers outstanding positioning accuracy and can handle payloads of up to 15 tons. Thanks to its wide range of sizes, with turntable diameters from 340 mm to 2,000 mm, and its hydraulic turntable clamping system, the FIBROPLAN® is ideal for demanding applications such as rotary milling and simultaneous machining processes, always ensuring maximum rigidity and accuracy.
