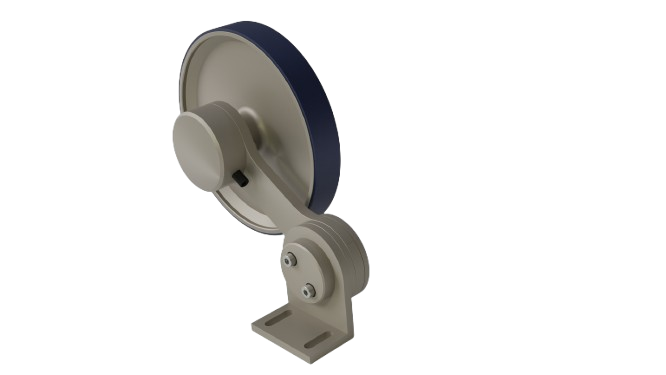

MEASURING SYSTEM WITH INTEGRATED SENSOR TECHNOLOGY
Vantaggi del prodotto:
Our system provides you with an extremely space-saving and
robust complete solution, including an absolute encoder and an
application-specific measuring wheel.
* Absolute position encoder
* No calibration required
* Robust against external stray fields
* Typical accuracy ±0.2°
Robust, precise, and insensitive –
THE innovation for magnetic encoders
Settori di applicazione:
Practical Applications
• Conveyor systems: synchronized position detection for precise tracking
• Robotics and handling systems: accurate motion measurement for gripping and positioning tasks
• Process monitoring: reliable operation under EMC disturbances and varying environmental conditions
Technical Highlights
• Absolute position encoder: precise, repeatable, robust against stray fields
• Accuracy: ±0.2° at 1,000–5,000 rpm
• Resolution: Singleturn SPI up to 16 Bit, Multiturn SPI up to 32 Bit
• Operating temperature: -20 °C to +60 °C
• Robust design: aluminium core, anodised; optional polyurethane running surfaces
• Contact pressure: adjustable, optimized for polyurethane coatings
Variants & Flexibility
• Measuring wheel sizes: 200 mm and 500 mm, others on request
• Running surface materials: aluminium or polyurethane
• Surface structures: cross-knurled, smooth, studded, corrugated
• Weights: 200 mm approx. 55–59 g, 500 mm approx. 483–505 g
User Benefits:
• Ready to use out of the box
• Space-saving, robust, and durable
• High measurement accuracy with minimal effort
• Flexible adaptation to specific applications
